Inventa Slide & Fold uPVC Doors Overview

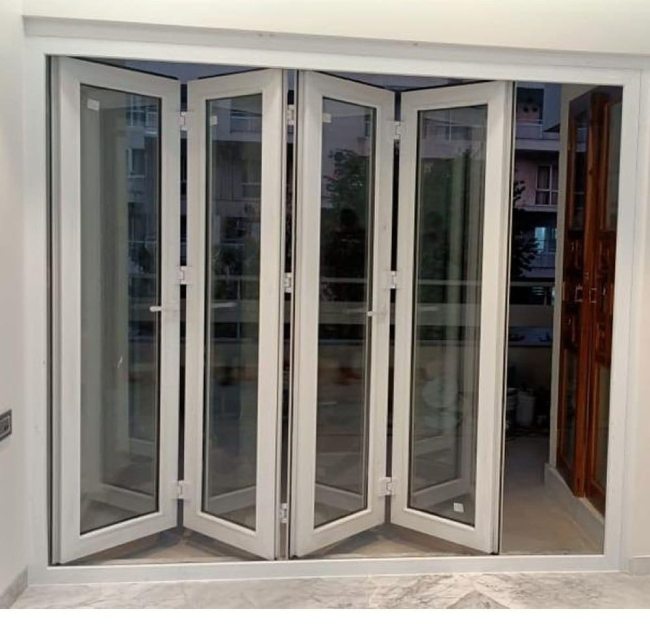

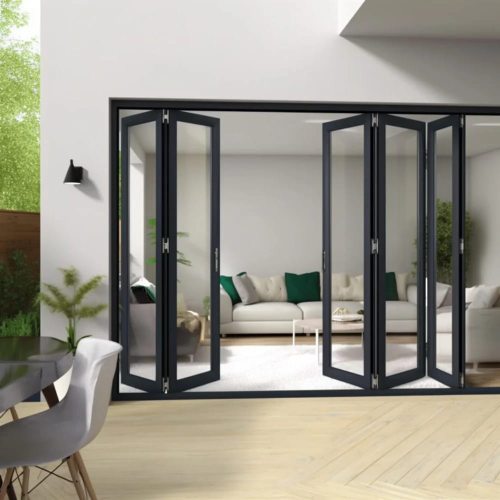

Inventa Slide & Fold uPVC Doors are ideal for designs that emphasize natural light and open spaces. Available in 3-track, 3- or 6-shutter configurations, they offer architects flexible design options and can be used for large balcony doors or floor-to-ceiling windows.
A standard 2-track, 2-shutter door can be designed with dimensions of 1.6 × 2.1 meters to withstand a wind load of 1500 Pascal. Larger sizes can be accommodated by incorporating wind load resistance features in the interlock section.
Typical sizes are determined by hardware limitations. Please note that shutter weight, including glass, reinforcement, and profiles, is a critical factor for hardware performance and should be reviewed with the Godson technical department.
Application
- Engineered with maximum reinforcement space to support large windows and doors.
- Ideal for halls and bedrooms, offering space-saving design and up to 66% opening.
Advantages
- Carefully crafted double-bevel design ensures both strength and a polished, elegant appearance.
- Engineered for minimal air leakage, reducing dust, noise, and thermal loss.
- Maximizes natural light and provides unobstructed views with minimal vertical separators.
- Reinforced with wind-resistant booster bars to support larger, stronger windows.
Size Chart
| Minimum | Maximum | |||
|---|---|---|---|---|
| Width | Height | Width | Height | |
| Window Size | 600 | 1950 | 5200 | 2400 |
| Sash size | 600 | 1950 | 1000 | 2400 |
All dimensions are in mm
