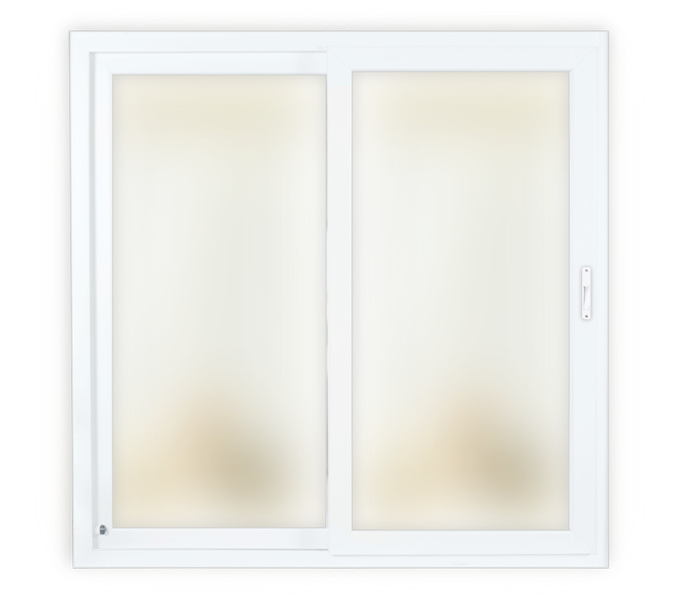

Inventa Sliding uPVC Doors

Inventa Sliding uPVC Doors are ideal for spaces where a full wall is replaced by a window or door opening. Unlike casement doors, which are suitable for openings up to 2200 mm, Inventa sliders can accommodate larger openings, allowing more air, sunlight, and natural light to enter the space.

Inventa Sliding uPVC Doors Overview

Inventa Sliding uPVC Doors are ideal for designs that emphasize natural light and open spaces. Our 3-track, 3- or 6-shutter configurations provide architects with flexible design options, making them suitable for large balcony doors and floor-to-ceiling windows.

A standard 2-track, 2-shutter door can be designed with dimensions of 1.6 × 2.1 meters to withstand a wind load of 1500 Pascal. Larger sizes can be accommodated by incorporating wind load resistance features in the interlock section.

Typical sizes are determined by hardware limitations. Please note that the shutter weight, including glass, reinforcement, and profiles, is a critical factor for hardware performance and should be reviewed with the technical department at Godson.

Application

Designed with maximum reinforcement space to support large windows and doors.
These systems are ideal for halls and bedrooms, offering space-saving functionality and up to 66% opening.

Advantages

Carefully crafted aesthetics provide both strength and a refined shine through double-bevel design.
Engineered for minimal air leakage, effectively reducing dust, noise, and thermal loss.
Maximizes natural light and offers unobstructed views with minimal vertical separators.
Reinforced with wind-resistant booster bars, allowing the creation of larger, stronger windows.

Size Chart

	Minimum		Maximum
	Width	Height	Width	Height
Window Size	1350	450	3600	2400
Sash size	450	450	1200	2400

All dimensions are in mm
